Description

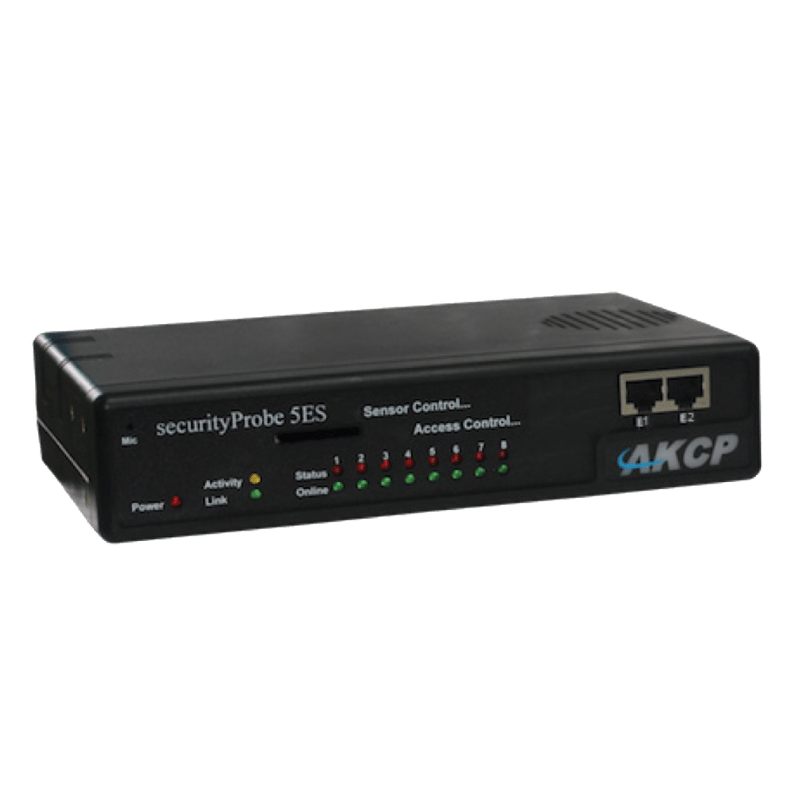

securityProbe 5ES
The only semote sensor monitoring system you’ll ever need…
Monitor the physical environment and receive alerts of any disturbances, such as unauthorized intruders, security breaches, high temperatures, smoke, water leakages, power outages and more.
Additional information
| Option | securityProbe 5E Standard with internal 40-60 VDC power supply, securityProbe5E Standard |
|---|
securityProbe5E Standard
Monitor the physical environment and receive alerts of any disturbances, such as unauthorized intruders, security breaches, high temperatures, smoke, water leakages, power outages and more.
Compatible with all of the AKCP range of Intelligent Sensors it provides a complete environmental, access control and security monitoring solution for up to 500 connected sensors.
The securityProbe 5E Standard has a Linux Operating System running an iMX25 CPU. An additional 2 Gigabytes SD card can be installed to provide greater storage capacity.
Networked Monitoring
It is TCP / IP compliant and runs lighttpd web server including https (SSL), Bash, Perl, Telnet, PHP, Email and Nagios.
The securityProbe 5E Standard has an easy-to-use web-based user interface for sensor configuration, data collection and extensive graphing. Complete SNMP functions such including SNMP v3 encryption are supported.
The securityProbe 5E Standard also supports Modbus Master / Slave, Modbus RTU and Modbus over TCP / IP creating a unique, easy to configure Modbus to SNMP gateway.
The web-based interface is written in PHP allowing end-user changes such as language translation. The securityProbe 5E Standard has a battery backed time of day clock for accurate record keeping.
Specifications
Specifications
| Dimension | Size 8.5″ x 5.43″ x 1.80″ Weight 1 Kg |
| Expansion Port | 2x RJ-45 Expansion Ports 115.2K BPS Data Transfer Rate Simultaneous functionality between Expansion Ports & RS485 port threshold status |
| Mountbing | 1U Rack Mount Standard Rack mount brackets included Compatible with AKCP’s DIN and rack mount trays |
| Power | External 7.0 – 9 VDC 3A Power Adapter Input Voltage and Current ratings : 100V~240V – 1AOptional – DCW : external +/- 40~60V DC input |
| Power Consumption | Typical 5.025 Watt, 0.67A |
| Status Indication | LED indication for power LED for network connectivity LED for sensor online and threshold status |
| Components | Manufactured using highly integrated, low power surface mount technology to ensure long term reliability. CPU: AKCP i.MX25 Processor 128 MB On-Board NAND Flash HC SD Memory Slot on-board (up to 16GB) |
| Operating Environment | Temp : Min. -35° C – Max. +55° C Humidity : Min. 20% – Max. 80% (Non-Condensing) |
| MTBF | 400,000 Hours |
| Connectivity | Ethernet 10/100 Mbps Optional Internal 3G/4G modem |
| Inputs | 8x RJ-45 Sensor Ports 2x RJ-45 Expansion Ports 1x USB 2.0 Modem Port Audio In (Analog) 2.5″ jack Internal Microphone RS485, 2 Pin Terminal box, (used for Modbus) |
| Outputs | Configurable output signals (0VDC/5VDC) on any of the 8 RJ-45 sensor ports Internal Speaker Out Ext. Speaker Out, 2.5” jack (Analog) Mic Out, 2.5″ jack (Analog) (For modem application) |
| Expansion Boards | 8 Port Intelligent Sensors Module (E-Sensor8) 16 Port Dry Contacts Module (E-opto16) (Maximum of 500 Sensors) Cabinet Control Unit (DCU) (Up to 25 Per Chain) Extendable up to 1,000 Feet or 300 meters Expansion modules are daisy chainable |
| Video – Analog | 4x Analog Video BNC input, powered externally * resolution 320×240 or 640×480 * type : NTSC or PAL 4x PTDC controller ports |
| Video – HD digital | 4x AKCP High Definition Digital camera USB input resolution 320×240 or 640×480 4x PTDC controller ports |
NOTICE : MODBUS POLLING INTERVALS
Setting the modbus polling interval can be complex. If the polling interval is too fast and if there are many registers to poll and many PMS on the same modbus line there may not be enough time to complete all of the polling. If you have any questions please contact support and we will be happy to help you.
Features
- Receive notifications of anomalous events via email, SMS / MMS, SNMP traps, and many more
- Integrates with network management systems via SNMPv1 and Encrypted SNMPv3
- Stream video and sensor information directly to your cellphone or PDA
- Ability to connect external GPRS / GSM modem, Bluetooth and WiFi USB adapters
- Uses Linux operating system for maximum stability and flexibility
- Virtual Sensors monitor power, Modbus, network devices, and other SNMP based equipment
- Built-in graphing and data logging, internally or to a remote PC
- Platform independent; free firmware upgrades and utilities from AKCP
- Monitor up to 500 intelligent sensors using expansion modules ( E-Opto 16 and E-Sensor 8 )
- Compatible with complete range of AKCP Intelligent Sensors
- Full Modbus support : Modbus Master / Slave, Modbus RTU, Modbus over TCP / IP
Architecture
securityProbe 5E Standard’s OnBoard Architecture
Up to 8 of AKCP’s Intelligent Sensors can be connected to the securityProbe 5E Standard. When plugged in, sensors automatically configure themselves and go ‘online’. Using the either the E-sensor8, or the E-opto16 expansion modules, up to 500 sensors can be connected to a single unit. Our easy-to-use port numbering system allows you to setup the securityProbe 5E Standard within minutes.
|
|
Applications
Applications
Sensor Graphing
The securityProbe 5E Standard integrates and displays graphs of all sensor data in its web-based user interface. The individual graph (day, week, month and year) for each sensor type can be customized, simply by modifying the script template used to generate a particular graph. RRD tool is used to build an embedded database of sensor data.
This data can be accessed from the web interface, or downloaded to a remote PC. MRTG can be used to generate real-time graphs of sensor data on a remote website.
Notifications
Notifications & False Message Filter
Notifications
Up to 8 of AKCP’s Intelligent Sensors can be connected to the securityProbe 5E Standard. When plugged in, the sensor automatically configures itself and goes online. Using the either the E-sensor 8, or the E-opto 16 expansion modules, up to 500 sensors can be connected to a single unit. Our easy-to-use web based interface allows you to setup the securityProbe 5E Standard within minutes. When online, the sensors use their 4 levels of threshold checking and report any status change.
Notifications and alarms can be dependent on the states of multiple sensors, and can be configured to escalate in severity over time. The notification system can alert you of a problem via email, SMS messages and telephone calls, (additional hardware required), or send a message to any commercial network monitoring system using SNMP traps. The securityProbe 5E Standard can automatically switch a relay on or off, wake-up or shutdown a remote server, send pictures and data via FTP, send a FAX, run your custom script and many more versatile functions.
The securityProbe 5E Standard can automatically push out the complete status of the unit and sensors via the Heartbeat Message feature. This can be setup to be sent through e-mail, SMS or SNMP traps. A HTTP get script can also be chosen, allowing the data to be pushed to web servers.
False Message Filter
In order to prevent false alarms, the securityProbe 5E Standard allows extensive filtering of events. You can limit events based on the time of day or the day of the week. You can also limit the number of alerts per hour, so that you are not swamped with many messages. This is especially important with the sensor like the motion detector where you may want to process an event only when the business premises are closed.
