The only remote monitoring system you’ll ever need.
Monitor the physical environment and receive alerts of any disturbances, such as unauthorized intruders, security breaches, high temperatures, smoke, water leakages, power outages and more.
| Option | securityProbe5E-X60 Standard Video, securityProbe5E-X60 Standard Video with internal 40-60 VDC power supply |
|---|
Monitor the physical environment and receive alerts of any disturbances, such as unauthorized intruders, security breaches, high temperatures, smoke, water leakages, power outages and more.

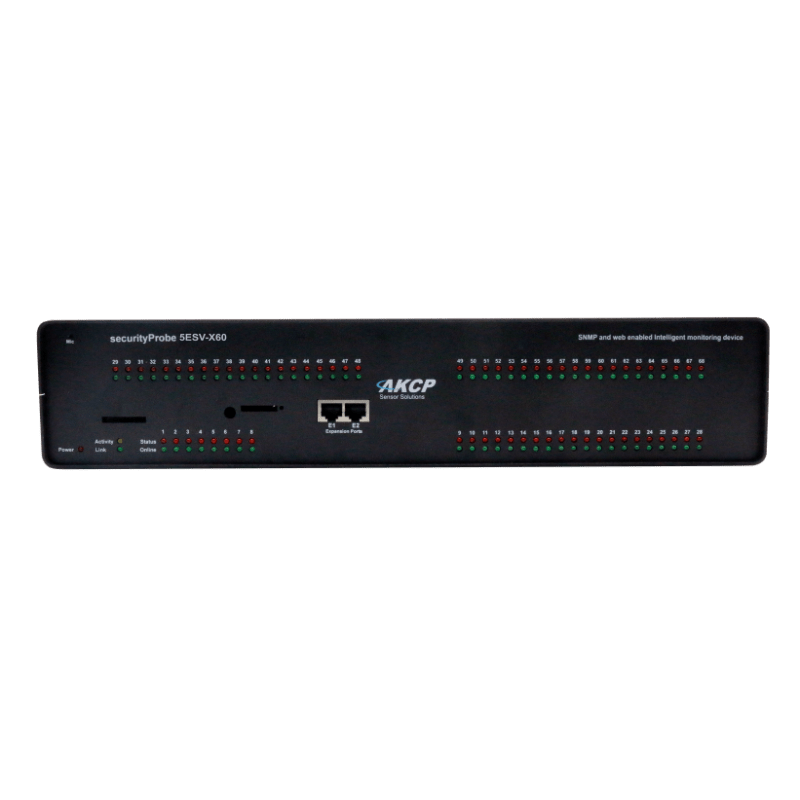

Compatible with the AKCP range of Intelligent Sensors, the SEC5ESV-X60 provides a complete environmental, access control and security solution for up to 500 connected sensors.
The securityProbe 5ESV-X60 has 60x 2 Wire Dry Contacts. An additional 2 Gigabyte SD card can be installed to provide greater storage capacity.
The SEC5ESV-X60 boasts High Speed USB 2.0 connectivity with ports available to connect up to 4x AKCP High Definition Digital Cameras and 1x EDGE-180M USB Modem.
Networked Monitoring
It is TCP / IP compliant and runs lighttpd web server including https (SSL), Bash, Perl, Telnet, PHP, Email and Nagios.
The SEC5ESV-X60 has an easy-to-use web-based user interface for sensor configuration, data collection and visual graphing. The SEC5ESV-X60 supports SNMP v3 with full encryption.
The securityProbe 5ESV-X60 also supports Modbus Master / Slave, Modbus RTU and Modbus over TCP / IP creating a unique, easy to configure Modbus to SNMP gateway.
The web-based interface is written in PHP allowing end-user changes such as language translation. The SEC5ESV-X60 has a battery time of day clock for accurate record keeping.
Specifications
Dimension
|
Expansion Ports
|
Mounting
|
Power Requirements
|
Status Indication
|
Output
|
Inputs
|
Operating Environment
|
Components
|
Power Consumption
|
MTBF
|
Expansion Modules
|
securityProbe 5ESV-X60’s OnBoard Architecture
Up to 8 of AKCP’s Intelligent Sensors can be connected to the securityProbe 5ESV-X60. When plugged in, sensors automatically configure themselves and go ‘online’. Using the either the E-sensor8, or the E-opto16 expansion modules, up to 500 sensors can be connected to a single unit. Our easy-to-use port numbering system allows you to setup the securityProbe 5ESV-X60 within minutes.
|
|
Applications
Connect up to 4 External High Definition Digital Cameras
The securityProbe 5ESV-X60 can display pictures from a
maximum of four High Definition Digital Cameras simultaneously
in several sizes, up to 640×480 pixels resolution.
AKCP cameras are used in professional surveillance
and CCTV monitoring systems. A built-in pan-tilt
controller interface allows complete control of pan
and tilt cameras using the industry standard Pelco D bus.
USB Connectivity
Whether you are connecting the High Definition Digital Camera to a securityProbe 5ESV-X60 or a AKCP Door Control Unit. The connection type and port number is Universal.
Four video ports on the rear of each unit are assigned to High Definition Digital Camera connectivity.
Sensor Graphing
The securityProbe 5ESV-X60 integrates and displays graphs of all sensor data in its web-based user interface. The individual graph (day, week, month and year) for each sensor type can be customized, simply by modifying the script template used to generate a particular graph. RRD tool is used to build an embedded database of sensor data.
This data can be accessed from the web interface, or downloaded to a remote PC. MRTG can be used to generate real-time graphs of sensor data on a remote website.
Notifications & False Message Filter
Notifications
Up to 8 of AKCP’s Intelligent Sensors can be connected to the securityProbe 5ESV-X60. When plugged in, the sensor automatically configures itself and goes online. Using the either the E-sensor 8, or the E-opto 16 expansion modules, up to 500 sensors can be connected to a single unit. Our easy-to-use web based interface allows you to setup the securityProbe 5ESV-X60 within minutes. When online, the sensors use their 4 levels of threshold checking and report any status change.
Notifications and alarms can be dependent on the states of multiple sensors, and can be configured to escalate in severity over time. The notification system can alert you of a problem via email, SMS messages and telephone calls, (additional hardware required), or send a message to any commercial network monitoring system using SNMP traps. The securityProbe 5ESV-X60 can automatically switch a relay on or off, wake-up or shutdown a remote server, send pictures and data via FTP, send a FAX, run your custom script and many more versatile functions.
The securityProbe 5ESV-X60 can automatically push out the complete status of the unit and sensors via the Heartbeat Message feature. This can be setup to be sent through e-mail, SMS or SNMP traps. A HTTP get script can also be chosen, allowing the data to be pushed to web servers.
False Message Filter
In order to prevent false alarms, the securityProbe 5ESV-X60 allows extensive filtering of events. You can limit events based on the time of day or the day of the week. You can also limit the number of alerts per hour, so that you are not swamped with many messages. This is especially important with the sensor like the motion detector where you may want to process an event only when the business premises are closed.
securityProbe5ESV-X60 Online Demo
We let you try before you buy!
Explore all the features of our best selling securityProbe5ESV-X60 over the internet using real, live data! No downloads or installations are required. Simply click on the ‘securityProbe5ESV-X60 Demo’ link below to gain quick and free access to AKCP’s securityProbe5ESV-X60.
