Description

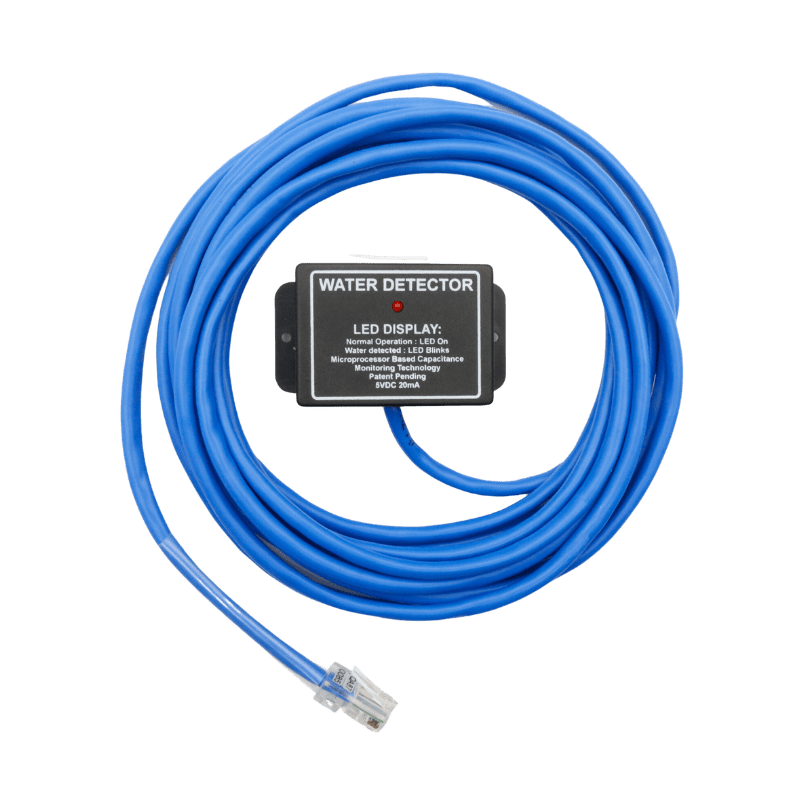

Spot Water Sensor
Protect your electronic equipment from water damage
The Spot Water Sensor is an advanced microprocessor-based design capable of detecting distilled water.
- Additional Lengths Available
- Powered by the base unit
Spot Water Leak Detection Sensor With 15ft cable
$185.00
Additional information
| Option | 100ft cable Spot Water Sensor, 15ft cable Spot Water Sensor, 60ft cable Spot Water Sensor, Insulation coating (for use on metal floors) |
|---|
spotWater Detector
The Spot Water Sensor is an advanced microprocessor based design capable of detecting distilled water. Standard water detectors are unable to detect distilled water and water with other impurities due to them using a resistance type circuit. These resistance types rely on electrolytes present in the water, therefore being unable to detect distilled water due to it’s high resistance.
The entire circuit is encased in epoxy giving it a waterproof finish and able to withstand being submerged in water for prolonged periods. It has an SNMP OID for monitoring across a network, and will therefore report it’s critical condition at anytime before returning to it’s normal state.
Notifications can be sent to you via SNMP traps, or E-mail (sensorProbe base units) or using any of the wide range of alerts available on AKCP base units.
Specifications
Specifications
| Measurement Range | Wet or Dry |
| Sensor Type | Open/Closed contact input switch |
| Patent pending, microprocessor controlled, capacitance measurement technology | |
| Able to measure distilled water | |
| Measurement Rate | Multiple readings every second |
| Indication | LED for Status |
| Operating Temperature | -20 °C~60 °C 4 °F~140 °F |
| Interface | |
| Communications Cable | RJ-45 jack to sensor using UTP Cat 5 wire |
| Communications Cable Max. length | The Spot Water Sensor can be extended from the RJ-45 Intelligent Sensor ports on the base units up to 500 feet, or 150 meters using standard CAT5/6 LAN cable |
| Power Source | Powered by the controller unit. No additional power needed |
| Full autosense including disconnect alarm | |
| Power Consumption | Typical 65 mWatt, 13mA |
| Dimensions | 55(W) x 39(H) x 27(D) mm |
| Mounting | Screw mounting |
| Important Note | AKCP does not recommend the spotWater Sensor to be placed on a conductive surface. If this is required, add the Insulation Coating P/N : WSIC to each spotWater Sensor ordered |
| Sensor count | 1 |
Features
- Detect presence of water
- Works with securityProbe and sensorProbe series base units
- Powered by the base unit, no additional power necessary
- Maximum cable extension of 150m (500ft)
- Even detects the presence of distilled water
3D View
