$155.00
Can be extended with any ethernet length cable, up to 300 feet.
Dual sensor, 2 sensors on one port
Combining temperature and humidity into the one sensor frees up an additional intelligent sensor port on your base unit.
| Option |
|---|

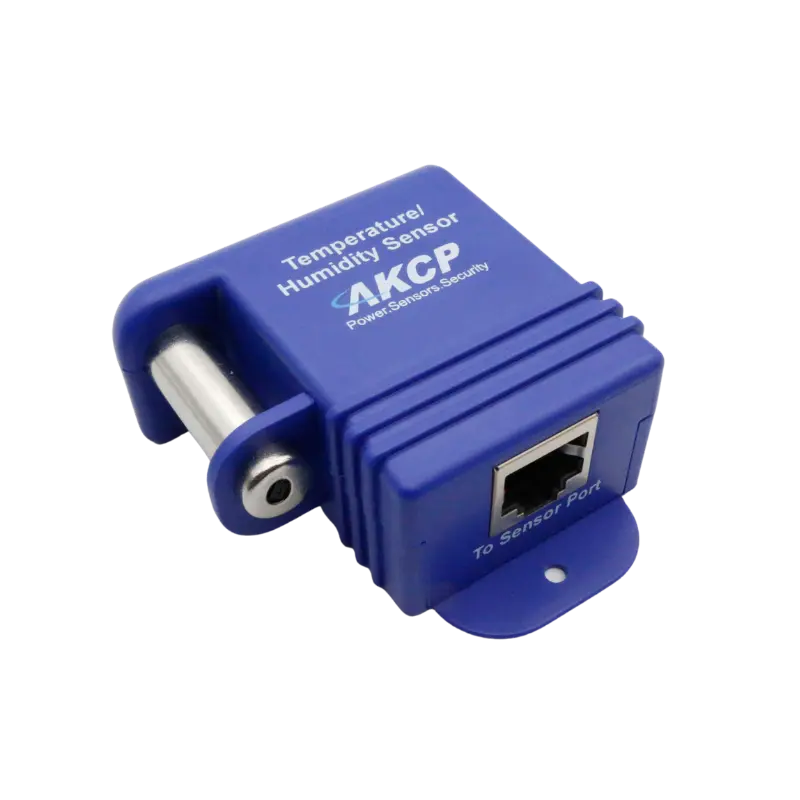

In situations where both temperature and humidity can be critical you can keep up to speed on the current conditions using this sensor. Combining temperature and humidity into the one sensor frees up an additional intelligent sensor port on your base unit.
Setup is simple with the sensorProbe, sensorProbe+ and securityProbe autosense function. Once plugged into the intelligent sensor port the base unit automatically detects the presence of the sensor and configures it for you.
Temperature and humidity for data center monitoring, remote sites and industrial controls.
All you need to do is set your thresholds for low and high warning and critical parameters. The built in graphing function of the base unit gives you a pattern of temperature or humidity trends over time.
| Temperature | |
| Measurement Range | -55°C to +75°C -67°F to +167°F |
| Measurement Resolution | sensorProbe+ series 0.1°C increments 0.2°F increments securityProbe series 0.5ºC increments 0.9ºF increments sensorProbe series 1ºC increments 1ºF increments |
| Measurement Accuracy | sensorProbe+ series and securityProbe series ±0.5°C accuracy from -10°C to +75°C ±0.9°F accuracy from +14°F to +167°F sensorProbe series ±1°C accuracy from -10°C to +75°C ±1°F accuracy from +14°F to +167°F |
| Humidity | |
| Measurement range | 0 to 100% Relative humidity |
| Resolution | 1%RH increments, 0.01%RH sensor reading |
| Accuracy at | At 25°C Min : ±2%RH Max : ±5% RH |
| Interface | |
| Communications cable | RJ-45 jack to sensor using UTP CAT5e/6 cable |
| Power source | Powered by the base units. No additional power needed |
| Power Consumption | Typical 17.25mWatt, 1.45mA |
| Maximum Cable Length | Run length is 1000 feet (300 meters) with approved low capacitance shielded cable or UTP |
| Sensor type | Semiconductor, microprocessor controlled |
| Dimensions | 56 x 55 x 33.3 mm |
| Mounting | DIN rail mounting Screw mounting |
| Sensor count | 2 |
| Sensor count (NIST2/NIST4) | 3 |
| Important Note | The fixed one foot type or THS01 are not designed to be extended. If you need to extend these sensors then you need to use the THS00 (remote type). We also do not recommend you trying to connect any of our AKCP sensors including the temperature and dual temp humidity sensors though patch panels or using the RJ-45 couplers to extend them. Please see the temperature sensors product manual or FAQ in our knowledge base for more details regarding this. |
| Compatability | THSxx-NIST2 and THSxx-NIST4 compatible with sensorProbe+ series only |
Sensor is available in 2 variations:
Fixed length temperature and humidity sensor with 1ft of cable attached
Variable length temperature and humidity sensor. Ships with free 5ft CAT5 cable, user can extend up to 1,000ft.
