Vibration Detection Sensor

Vibration Detection Sensor


Add to Quote
SKU: VDS Categories: ,


Vibration Sensor

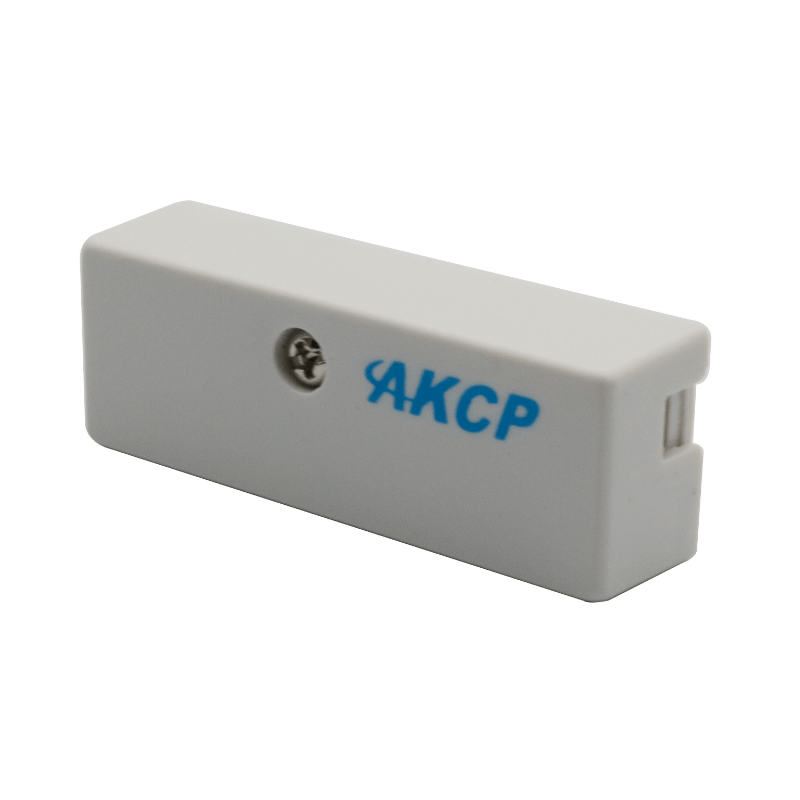

The AKCP vibration sensor is designed for protecting against forced entry

This product can be connected to both the sensorProbe or securityProbe base units.

Additional information


vibrationDetect Sensor

The AKCP vibration sensor is a normally closed input switch that will detect when there is vibration, or a window is broken. It can be connected to both the sensorProbe or securityProbe base units and then linked to notification alerts.

This sensor is designed for protecting against forced entry by hammer, saw, crowbar etc… through walls, ceilings, windows, safes, cabinets, etc… It will initiate an alarm when a vibration from a non-desirable force strikes the protected surface. A built-in tamper switch is independent from the circuit of the vibration detector for your convenience.



Measurement Range Alarm or Normal
Sensor Type Normally Closed contact input switch
Contact Pressure Adjustable from 1 to 50 grams but recommended setting between 5 and 25 grams only. Supplied with pressure of approximately 6 grams.
Contact Break Time Approximately 45ms maximum (at 6-grams of pressure)
Rated 1A at 50VDC
Life Over 100,000 contacts
Contacts Pure silver
Case ABS resin.
Communications Cable RJ-45 jack to sensor using UTP Cat 5 wire
Communications Cable Max. length 1000Ft (305m) with approved low capacitance shielded cable or UTP
Power Source Powered by the controller unit. No additional power needed
  Full autosense including disconnect alarm
Dimensions 15mm(H) x 21mm(W) x 60mm(L)
Weight 20 grams.
Sensor count 1

Connection Flexibility

Connection Flexibility

The vibrationDetect sensor can be connected to the sensorProbe and securityProbe units via the RJ-45 dry contact sensors. Or it can be directly connected to the dry contact inputs on the sensorProbe8-X20, sensorProbe8-X60, securityProbeX-20 and securityProbe-X60 units allowing security protection for many windows using only a single base unit.
