Depth Pressure Sensor for tanks up to 2m*

Depth Pressure Sensor for tanks up to 2m*

$505.00

Add to Quote

Description

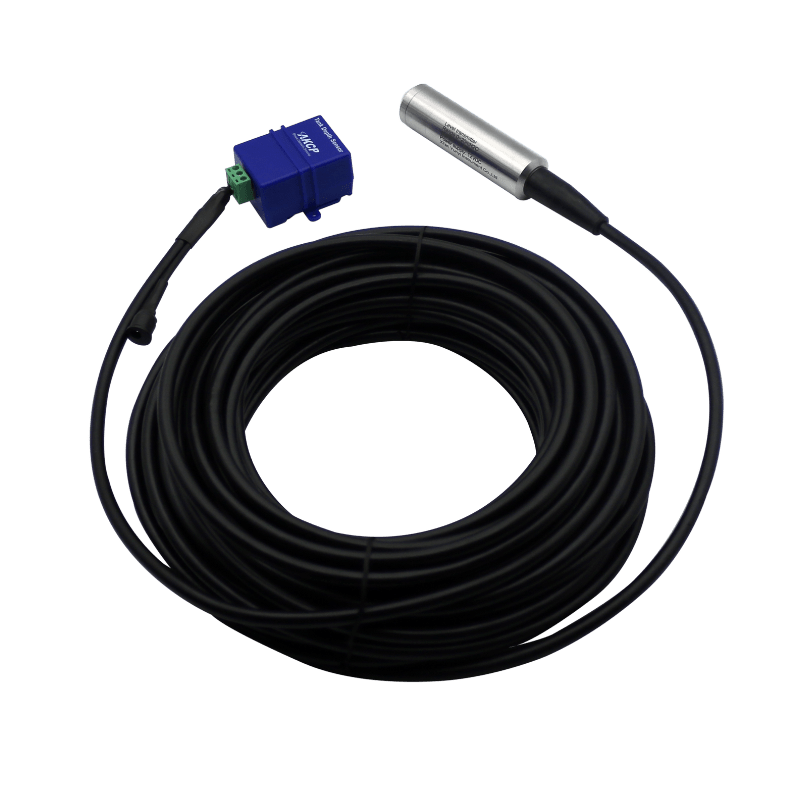

Tank Depth Sensor

Monitor fuel level, or other liquid levels in storage tanks. Ensure you never run low and are ready for the most critical moments

Tank Depth Sensor is compatible with all sensorProbe+ and securityProbe base units. Suitable for any tank up to 20 meters fluid depth. Programmable tank profile provides accurate measurement.

Product Code

  • TDPS-2 (Tank Depth Pressure Sensor for 2 meter tank)*
  • TDPS-5 (Tank Depth Pressure Sensor for 5 meter tank)*
  • TDPS-10 (Tank Depth Pressure Sensor for 10 meter tank)*
  • TDPS-15 (Tank Depth Pressure Sensor for 15 meter tank)*
  • TDPS-20 (Tank Depth Pressure Sensor for 20 meter tank)*

Additional information

Option

, , , ,

Overview

The majority of genset failures are “Failure To Start” error. Much of the time this can be attributed to insufficient fuel. Fuel theft is also a problem for many generators, particularly those at remote site locations which are difficult to monitor and secure. Tank Depth Sensors can be deployed to tackle many of these common issues.

  • Monitor fuel level and know when to schedule refilling of the tanks
  • Monitoring of fuel level for sudden drops that could indicate leakage or theft
  • Graphing and record of fuel usage over time
  • Compare fuel usage with fuel delivery billing.

Connect to a single sensor port on your sensorProbe+, securityProbe+ or securityProbe base unit. Alerts can be sent through SNMP, E-mail and SMS (with optional cellular data modem). Remote site locations can be monitored from our central monitoring software AKCPro Server, which includes drill down mapping and customizable desktops to display the data you need.

sensorProbe+ and securityProbe devices are Modbus ready, making a connection with many generator control panels easy via their Modbus RS485 output. Combined with a tank depth sensor it gives you a complete remote site generator monitoring solution.

Fuel Theft
Typical fuel theft is done by inside personnel and amounts to just a few litres per day. In the case of one of our African customers, 10 litres per day was being skimmed from the tank. Typically this would not be easily detected with fuel level monitoring only. However, with the addition of a Modbus connection to the generator, it is possible to have a monthly report of total fuel used by the generator and compare this to total fuel used from the tank as read by the TDPS.

In this case, 10 litres per day equated to 300 litres per month. The generator flow meter stated 400 litres were consumed, the tank depth sensor showed a drop of 680 litres, showing an obvious large difference in the actual fuel used and the fuel remaining in the tank.

TDPS Installation

Suspend the tank depth sensor at the bottom of your tank, and it will sense the pressure exerted by the water column above. Based on the pressure and the type of liquid you are measuring the depth is calculated. By programming the base unit with your tank dimensions, the total volume in % or litres can be displayed.

TDPS is easy to install, supplied with all mounting hardware required. Simply follow the 5 steps below.

  1. Measure the total tank height
  2. Mark the tank height on the TDPS cable and lock cable in that position on the mounting plate cable gland
  3. Drill a 30mm diameter hole for the sensor, and 4x 5mm diameter holes for the mounting plate. Thread the 5mm holes
  4. Secure the mounting plate in place with the M5 bolts provided
  5. Seal around the mounting plate with silicone sealant.



Specifications

Tank size up to 20 meters Sensor is calibrated for specific tank size, please select for either max 5, 10, 15 or 20 meter tank when ordering
Accurate measurement for non-linear size tank for static liquid level, via linearization
Measurements
Measurement Method Hydrolic Pressure(Fluid column pressure)
Tank Depth 0-20 m (65ft) for Water,
0-15m for Petrol,
0-16, 6 m for Diesel
Accuracy Distance 0-2000 cm (65 ft) with 0.2% accuracy for water
Full Scale Accuracy +/-0.5% FS (Max)
Mounting Suspended inside the tank vy leader cable
Cables
Communications Cable RJ45 jack to UFLS converter box using UTP Cat 5 wire
Communications Cable Max. length: 30 meters (100 ft)
Ships with a 15 foot CAT5 LAN extension cable
CAT5 LAN extension cable be extended up to 30 ft (10 m)
Sensor Part Cable Leader cable from the sensor part to the converter box is 5/10/15/20 meters respectively based on depth type ordered.
Environmental
Chemical Resistance Petrol, Diesel, Water
Operating Temperature Rate -20°C to 80°C
Protection Grade IP68 (pressure sensor part)
Electrical The module operates at 5V from securityProbe5, E-Sensor8 or sensorProbe+
The sensor part operates at 12V from an external power supply (provided)
Notes Works with certain type of fuel, fres water
Requires securityProbe 5E, E-Sensor8 expansion module or sensorProbe+
