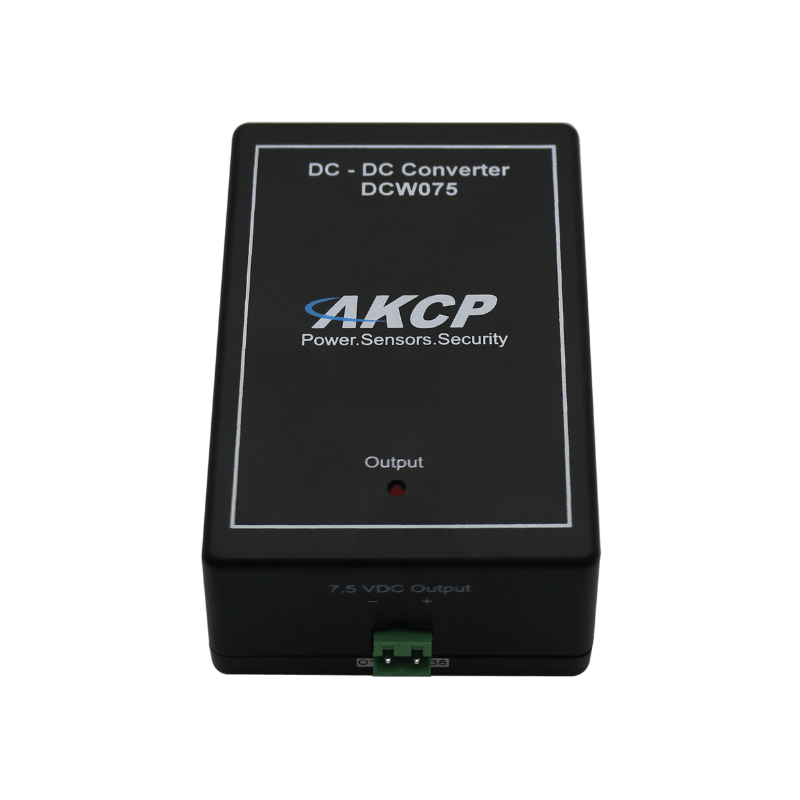

DC to DC converter which generates an output of 7.5 volts
The ±40-60 VDC input power supply is a DC to DC converter which generates an output of 7.5 volts. This DC power supply comes in an external box for use with AKCP sensorProbe (7.5 VDC version) and securityProbe devices. For sensorProbe8-X20 and X60 devices, as well as securityProbe-5E and X20/X60 devices there is an option to install this power supply inside the box.
This power supply enhances the capability of 48 VDC generally used in telecommunications applications by generating 15 watts output power. The power supply has maximum capacity of a 2-ampere load.
Our new power supply is comprised of several safety features; isolated ground between input and output, a redundant second input channel which is automatically activated in the event of primary channel failure, and over-voltage protection, fuse protection, protection against input voltage reversal.
The ±40-60 VDC input power supply is a DC to DC converter which generates an output of 7.5 volts. This DC power supply comes in an external box for use with AKCP sensorProbe (7.5 VDC version) and securityProbe devices. For sensorProbe8-X20 and X60 devices, as well as securityProbe-5E and X20/X60 devices there is an option to install this power supply inside the box..
This power supply enhances the capability of 48 VDC generally used in telecommunications applications by generating 15 watts output power. The power supply has maximum capacity of a 2-ampere load.
Our new power supply is comprised of several safety features; isolated ground between input and output, a redundant second input channel which is automatically activated in the event of primary channel failure, and over-voltage protection, fuse protection, protection against input voltage reversal.
