Hardware Motion Detector – PIR

A Passive Infrared Motion Detector for your security needs

When motion is detected, notifications can be sent to give instant feedback about the developing situation.

  • Powered by the base unit

Additional information


Motion Detector

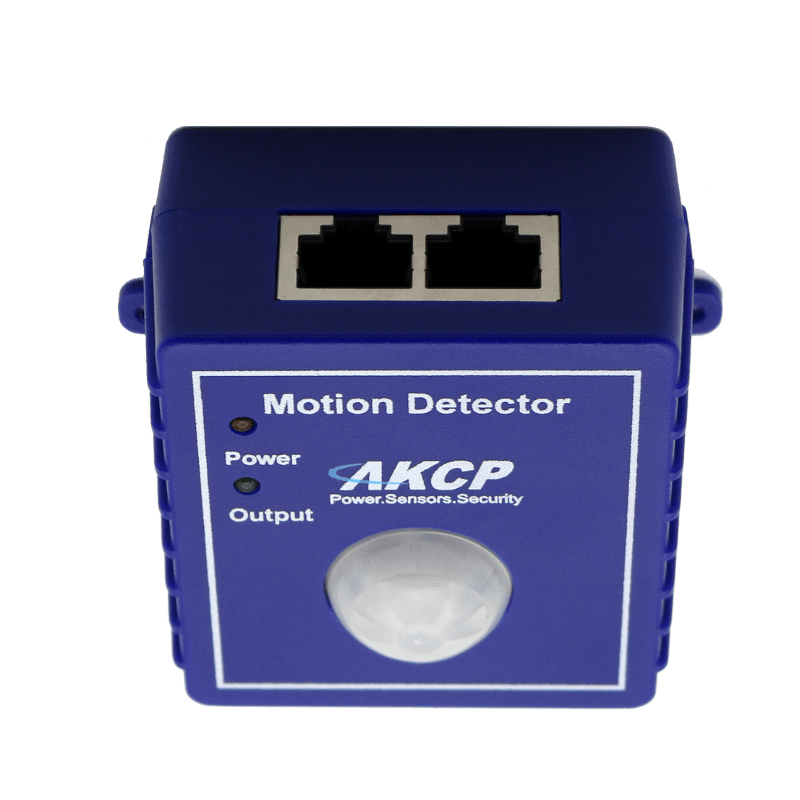

The AKCP PIR Hardware Motion Detector is the perfect accompaniment as part of your security monitoring system. Its unique design allows mounting in either ceiling or walls and characterizes the optimum detection angle to prevent false alarms.

Although compatible with both sensorProbe and securityProbe product series, it is ideally suited to the securityProbe product line. When combined with the securityProbe 5E’s notifications, cameras and security sensor it provides a complete network enabled security monitoring system.

When motion is detected notifications can be sent from the securityProbe 5E via SMS, E-mail or MMS (amongst others) and even have pictures from installed cameras attached to give instant visual feedback as to the developing situation.



Measurement Range Alarm or Normal
Sensor Type Infrared sensor dual element, High sensitivity
Detection angle 60°
Maximum working distance is 3 m (9 Ft),  High RFI immunity
Daisy Chainable Up to 10 Motion Detector Sensors on a single port
Operating Temperature -20 °C~50 °C, 4 °F~122 °F
Communications Cable RJ-45 jack to sensor using UTP Cat 5 wire
Communications Cable Max. length With approved low capacitance shielded cable or UTP
Maximum cable length of single motion detector sensor is 300 m (100 Ft)
Maximum total cable length of a string of 10 motion sensors is 46 m (150 Ft)
Maximum length of cable between each motion sensor should less than 6 m (20 Ft)
Power Source Powered by the controller unit. No additional power needed
Full autosense including disconnect alarm
Power Consumption Typical 50 mWatt, 10mA
Dimensions 65(W) x 62(H) x 15(D) mm
Mounting Wall/ceiling mounted design, DIN rail mounting, Screw mounting
Sensor count 1


  • Wall/ceiling mounted design
  • 60º detection angle
  • High RFI immunity
  • Powered by base unit, no additional power required
  • Up to 10 Motion Detector Sensors on a single port

Example Setup

This demonstrates the connection of 3 PIR Hardware Motion Detectors
